Scottish shale Scottish shale

Stewartfield No.1 pit

Parish:
Uphall, Linlithgowshire
Local authority:
West Lothian
Ownership:
Seams worked:
Broxburn Shale
Opened:
Probably opened early 1860's
Closed:
Pre-1897
Current status of site:

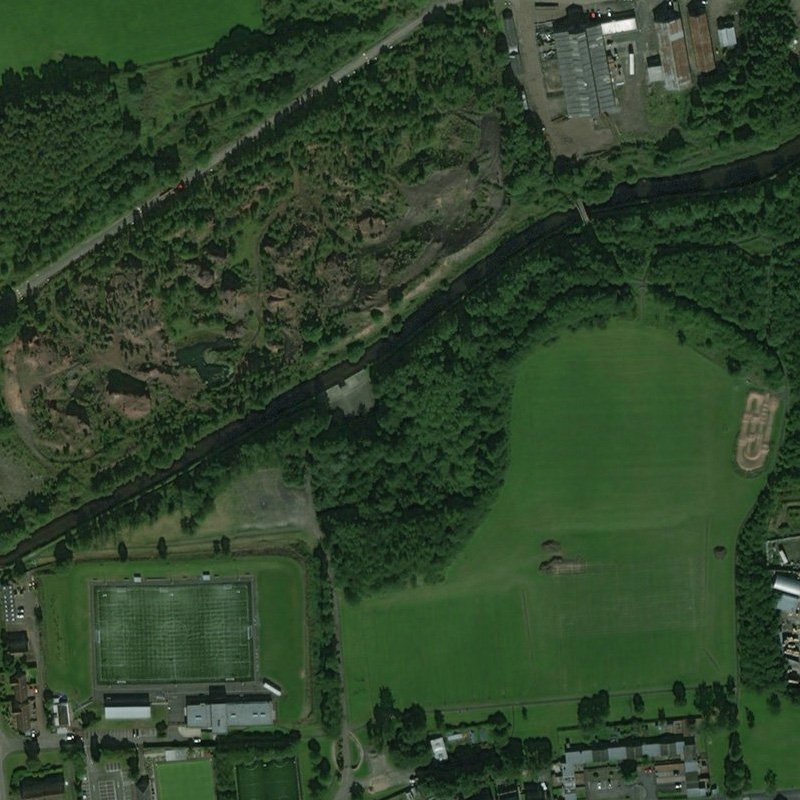

Site of bing cleared and now a football pitch
Regional overview:


7 fathoms deep

Serving - Uncertain, one of a number of early oil works in Broxburn? subsequently Broxburn Oil Works

The history of the shale workings in the Stewartfield area is unclear. It appears that Stewartfield No. 1, No. 2, No. 3 and No. 4 Pits were early, shallow shafts that were ultimately linked up underground. Stewartfield No. 1 and No. 2 Mines were subsequently developed, following the seam of Broxburn Shale from its outcrop close to Broxburn Oil Works, linking existing workings, and providing access to the most distant reserves.

Shale-field: Broxburn district.

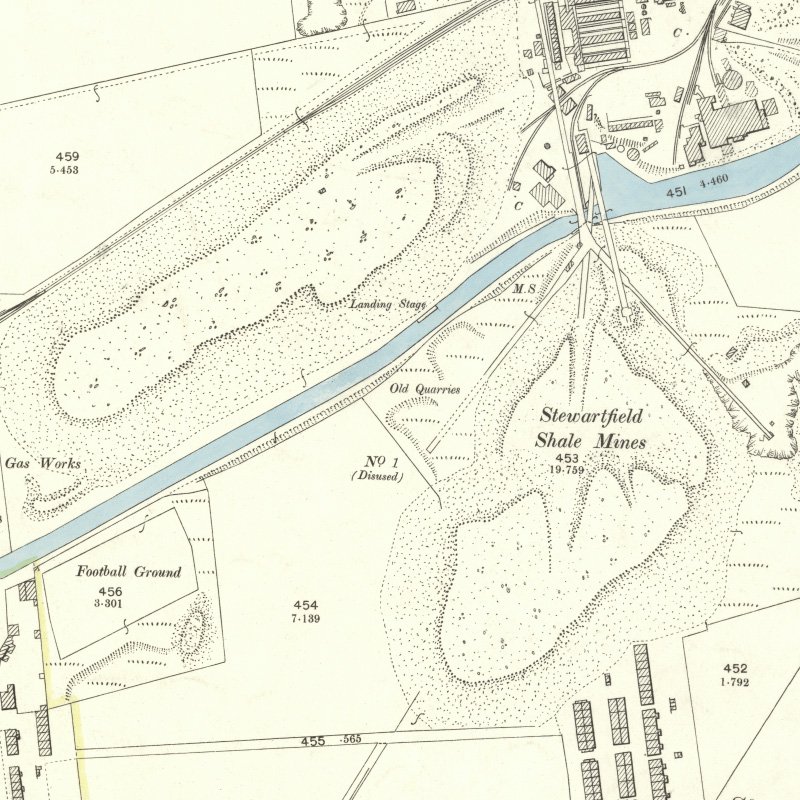

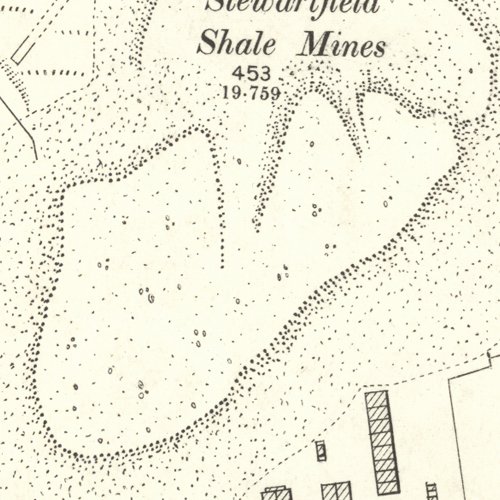

Mapped by the Ordnance Survey of c.1897, by which spent waste from Broxburn Oil Works had covered the mine site.

  • Location & workings at Stewartfield No.1 pit
    • Show seams:

  • Detailed maps
  • External references
    • Further research is required on the following references, which seem most likely to refer to Stewartfield No. 1 Mine (rather than No. 1 Pit), but are incompatible with other evidence.

      • Coal Authority Mine Abandonment Catalogue No. 4349, showing workings in the Broxburn and Curly Shales from "Stewartfield No. 1", abandoned in 1903.
      • Coal Authority Mine Abandonment Catalogue No. 7781, showing workings in the Broxburn, Curly, Grey, Fells and Dunnet Shales from "Stewartfield No. 1", abandoned in 1923.
