Scottish shale Scottish shale

Gavieside No.2 pit

Parish:
West Calder, Midlothian
Local authority:
West Lothian
Seams worked:
Fells Shale
Opened:
c.1863?
Closed:
1879
Current status of site:

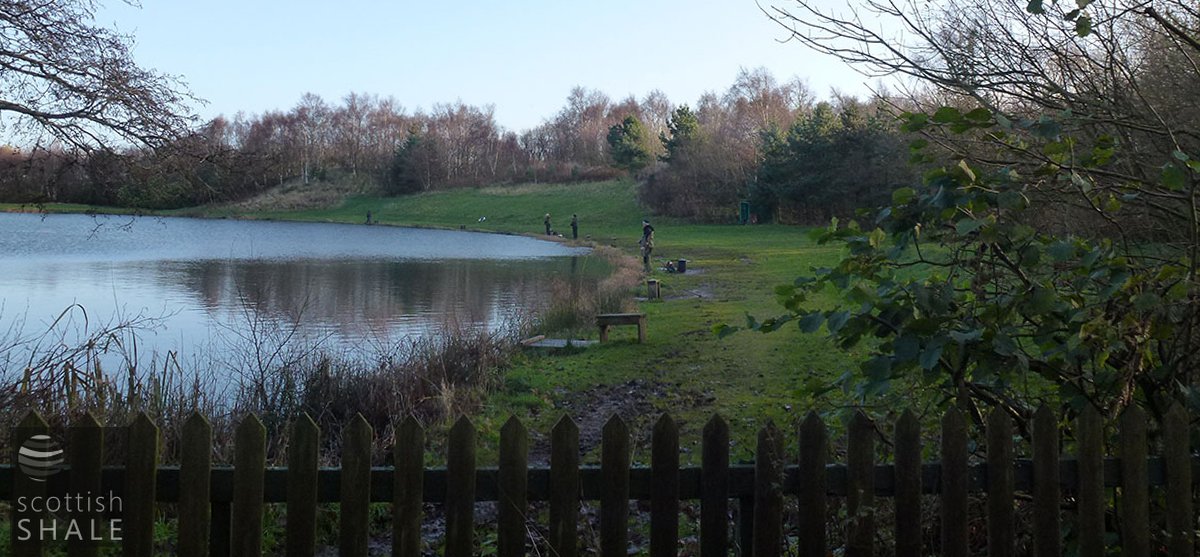

Wooded waste land, no trace remains of surface features
Regional overview:


Vertical shaft to the Fells shale

Serving Gavieside Oil Works

The arrangement and history of the pits and mines serving West Calder Oil Company's Gavieside Paraffin Oil Works remains unclear.

The Fells Shale (named after A.M. Fell, Works Manager of the Gavieside Paraffin Oil Works) outcropped close to the oil works. British Geological Survey plan LSP 471 shows two pits (numbered No. 1 and No. 2) and two unidentified mines, all apparently accessing the Fells Shale. The list of "Pits and Mines Sunk" indicates that only two pits and two mines served the Gavieside Paraffin Oil Works (named in this document as "West Calder Oil Works").

Gavieside No. 1 Pit is listed on abandonment plans as working the Fells Shale and one (or both) of the mines appear to follow the seam of Fells Shale into the ground from its outcrop. It seem likely that Gavieside No. 2 Pit also exploited the Fells Shale, although the Broxburn Shale was subsequently worked at a greater depth from Polbeth No. 27 Mine.

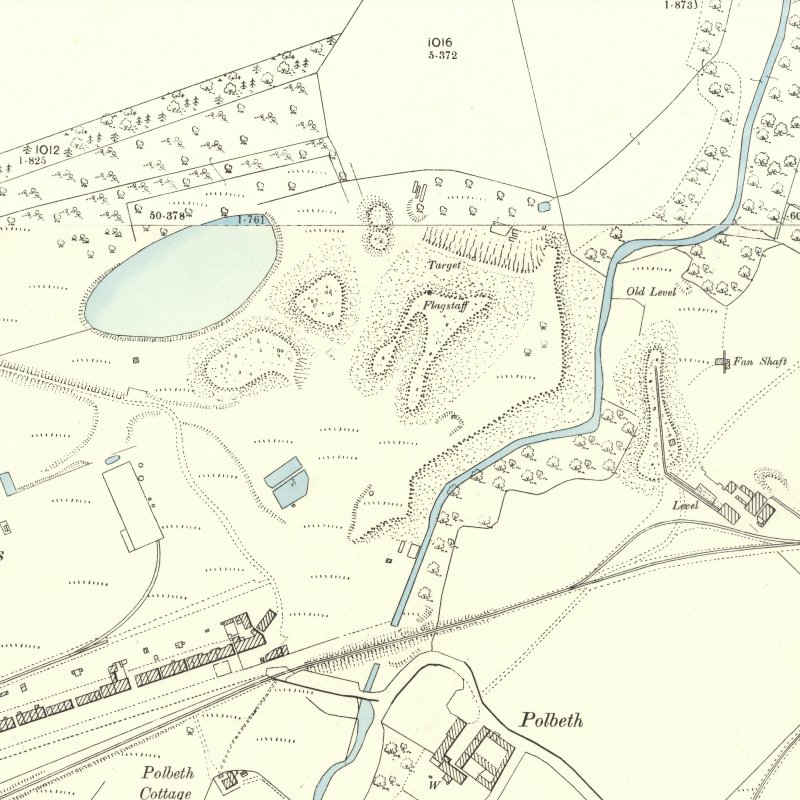

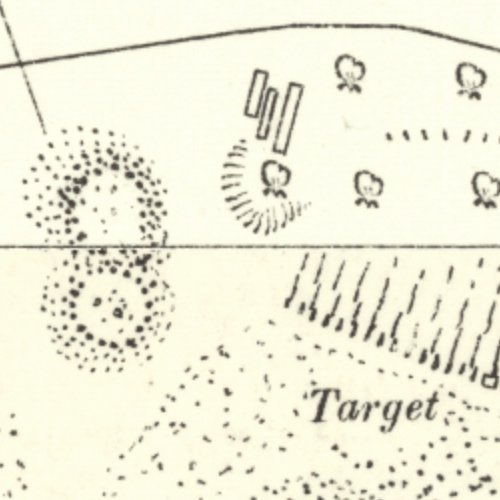

Mapped by the Ordnance Survey of c.1895, showing foundations or other ruins close to the supposed site of No. 2 Pit.
