East Hermand Oil Works

Parish:
West Calder, Midlothian
Local authority:
West Lothian
Opened:
Built c.1866
Closed:
Presumably cleared c.1873,nearby site developed as brickworks and sandstone quarry
Current status of site:

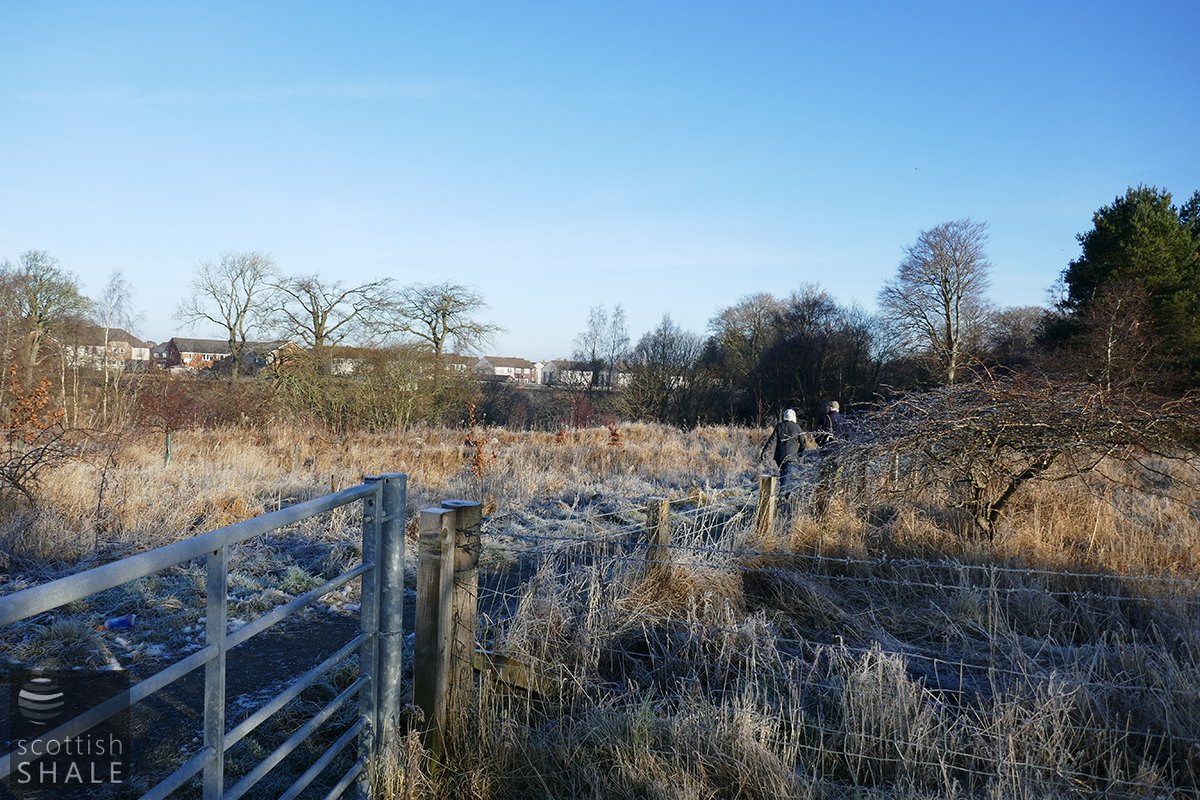

Public open space, recently planted as community woodland

East Hermand Oil Works.jpg

A substantial crude oil works, equipped with nine benches of horizontal retorts, two shale mines, worker's housing, offices, and a brickworks, representing an investment of almost £20,000. The oil company also constructed a railway siding from the Caledonian Railway's Cleland and Midcalder line, and owned a number of railway wagons for transporting their products.

The works were established by Matthew Dunnet, initially in partnership with James Ferrie and later with James Brown, trading as the East Hermand Shale Company. It appears that the company ran out of capital, and the partners were declared bankrupt in 1872. No buyers were found for the works, which appear to have been dismantled in about 1874, and the site reverted back to Thomas and James Thornton, who retained the mineral lease of the Hermand estate.

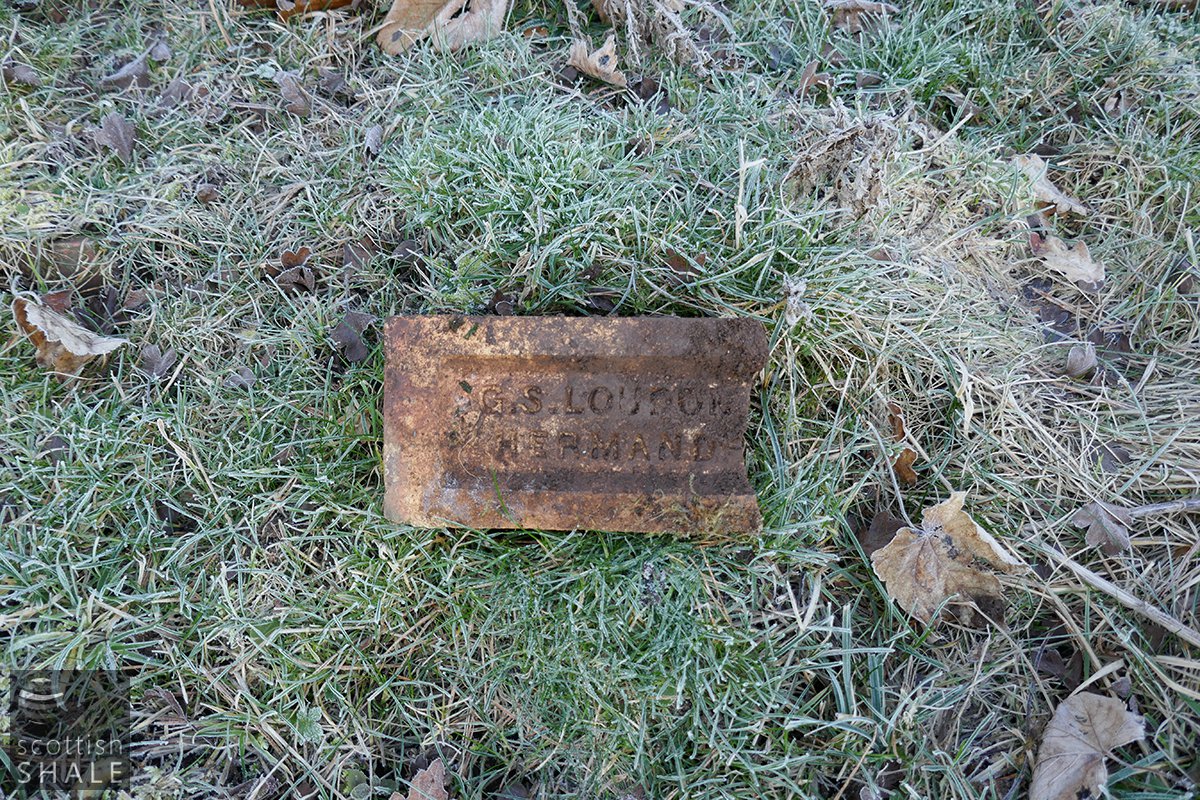

It is possible that some brickworks plant remained on site, as bricks were produced at East Hermand from at least the 1880's until at 1915 . Between the 1880's until about 1900, sandstone was quarried to the south west of the oil works site where the Dunnet shale had earlier been mined, producing an excellent quality building stone, was used in some of Edinburgh's finest buildings, including the Royal Museum of Scotland.

Hermand brickworks were advertised for sale, as a going concern producing 10,000 bricks per day, by proprietor John B Walker in Glasgow Herald 28th April 1886. See also Dunnet's mine, East Hermand.

  • Rateable value by year
    • Date Rateable Value Owner Occupier Notes
      1867 £25 Mathew Dunnet Mathew Dunnet
      1868 £26 Mathew Dunnet Mathew Dunnet
      1869 £150 Mathew Dunnet Mathew Dunnet
      1870 £295 Mathew Dunnet Mathew Dunnet
      1871-72 £420 Mathew Dunnet Mathew Dunnet
      1873 £350 Thomas & James Thornton Thomas & James Thornton
  • Location map

    Detailed maps

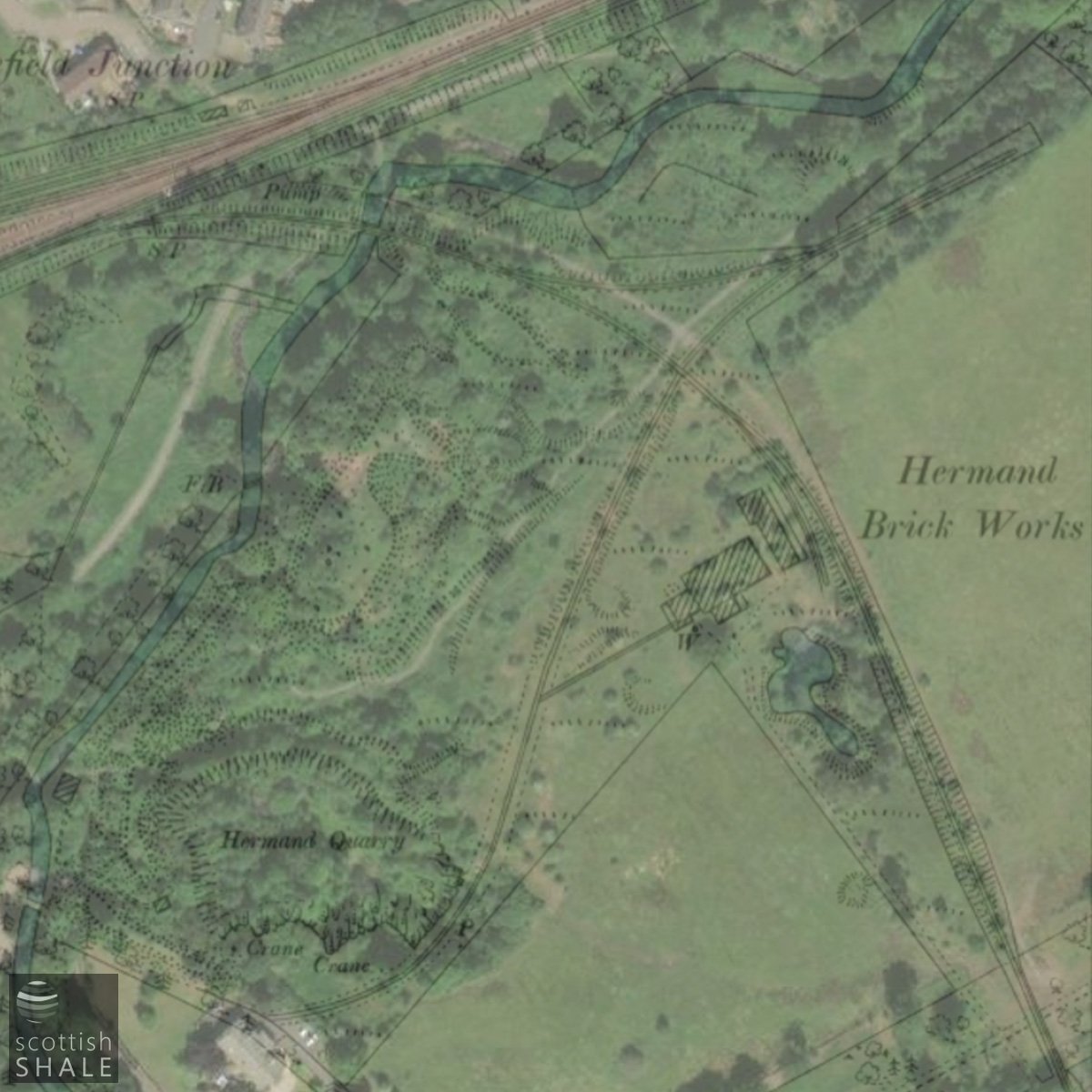

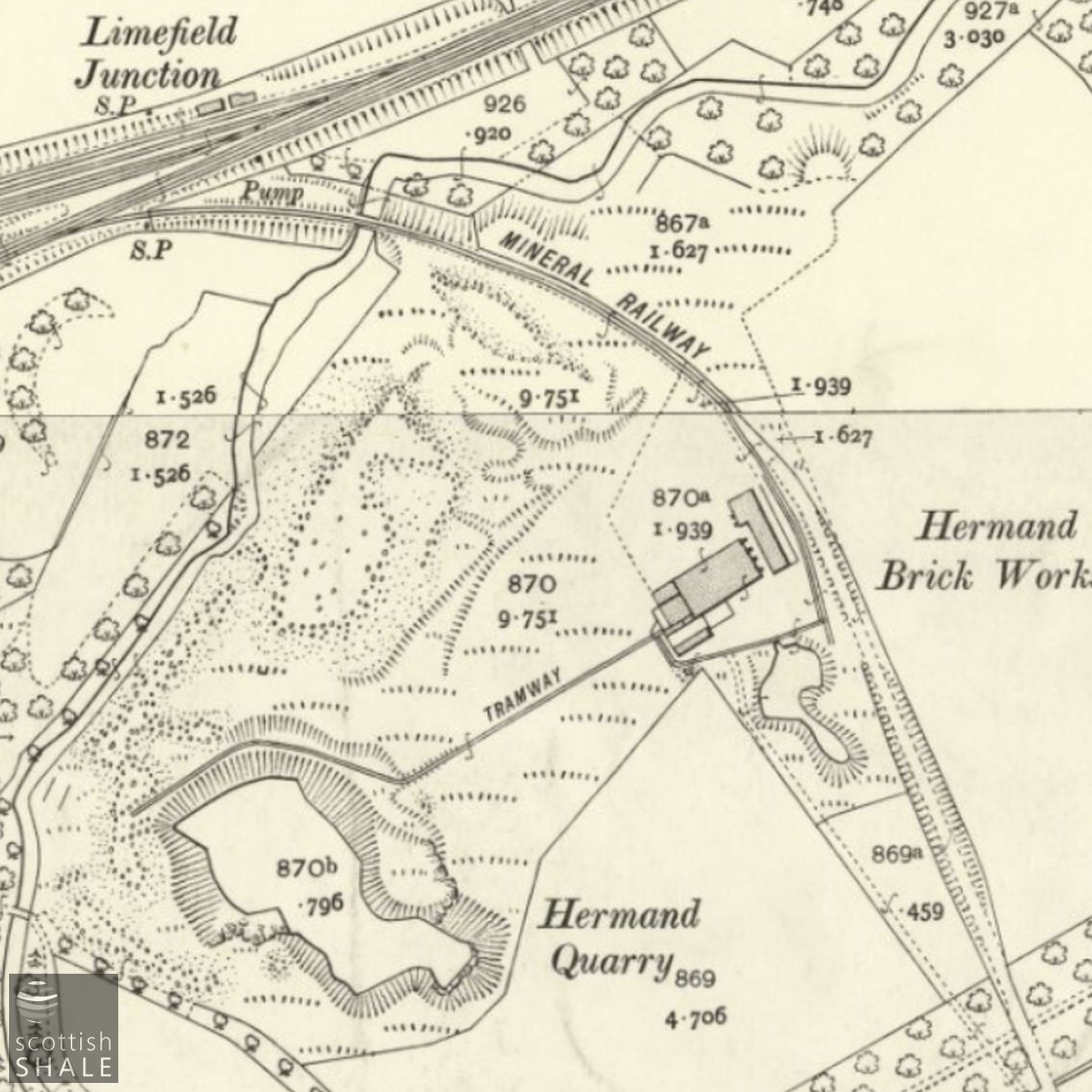

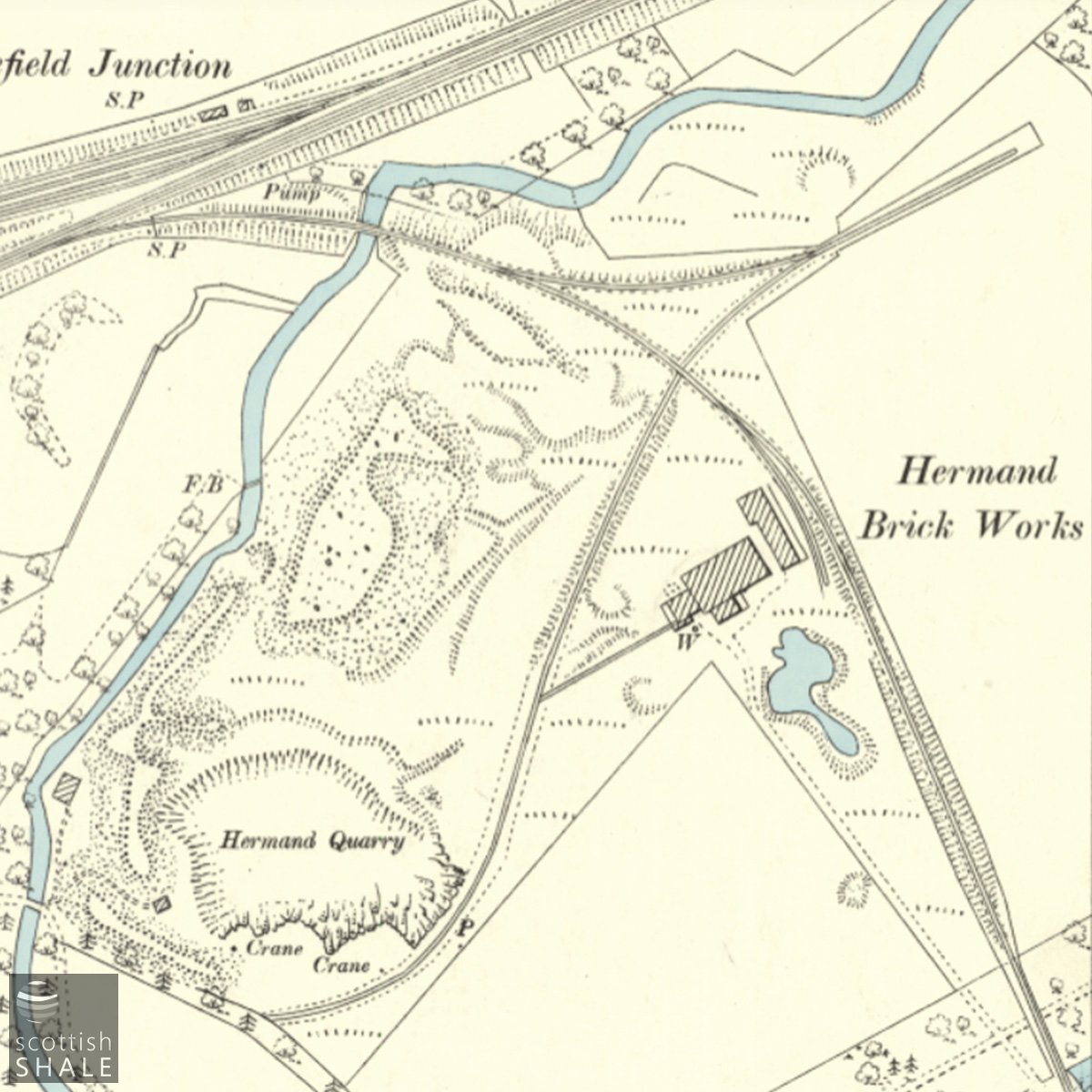

    No maps of the oil works are known to survive. The second edition OS map, surveyed in 1895, show an industrial landscape that had changed considerably over the twenty years or so since East Hermand oil works were demolished. This map shows a triangular arrangement of railway lines. It might be imagine that the top part of this triangle represents the original railway siding serving the oil works. A line heading south from this siding may have been installed to serve the Hermand sandstone quarry which is thought to have opened in the early 1880. Trains would need to pull into the headshunt and then reverse direction to descend the gradient into the quarry. The third side of the triangle curved southwards towards pits in the Hermand estate opened prior to 1883, serving the Hermand brickworks en-route.

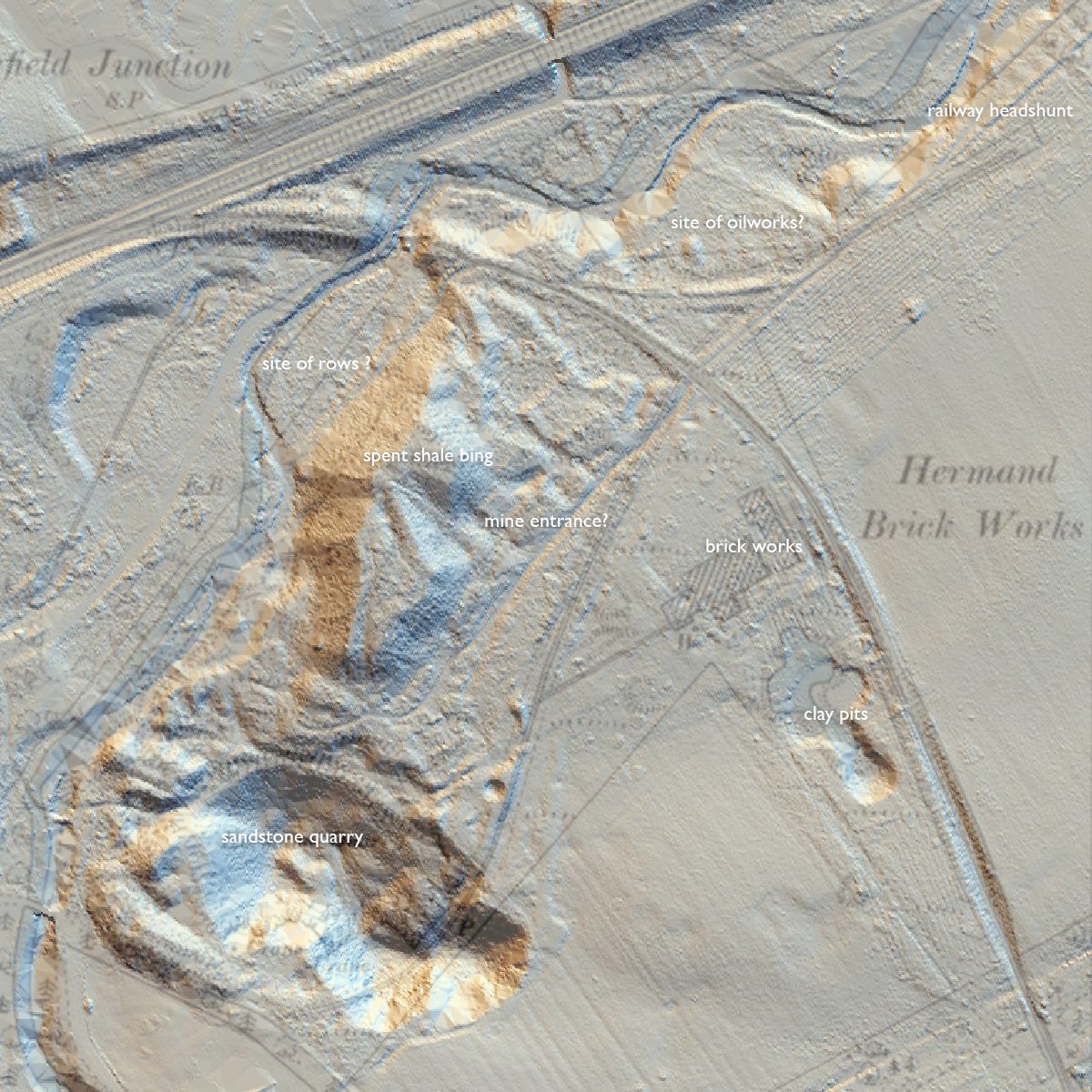

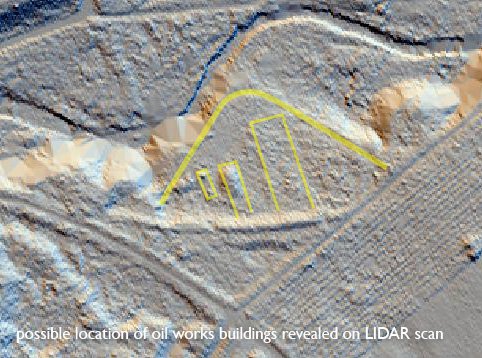

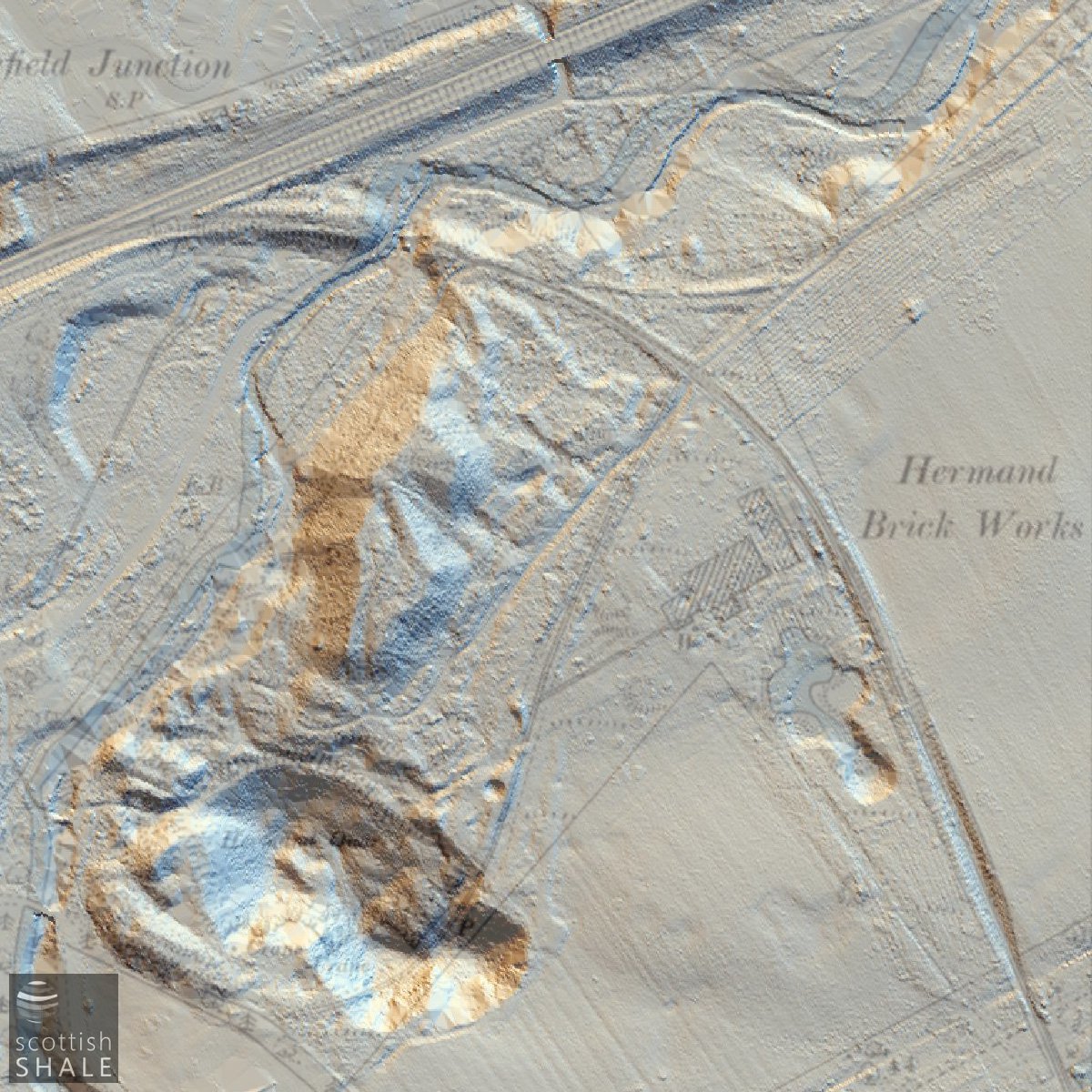

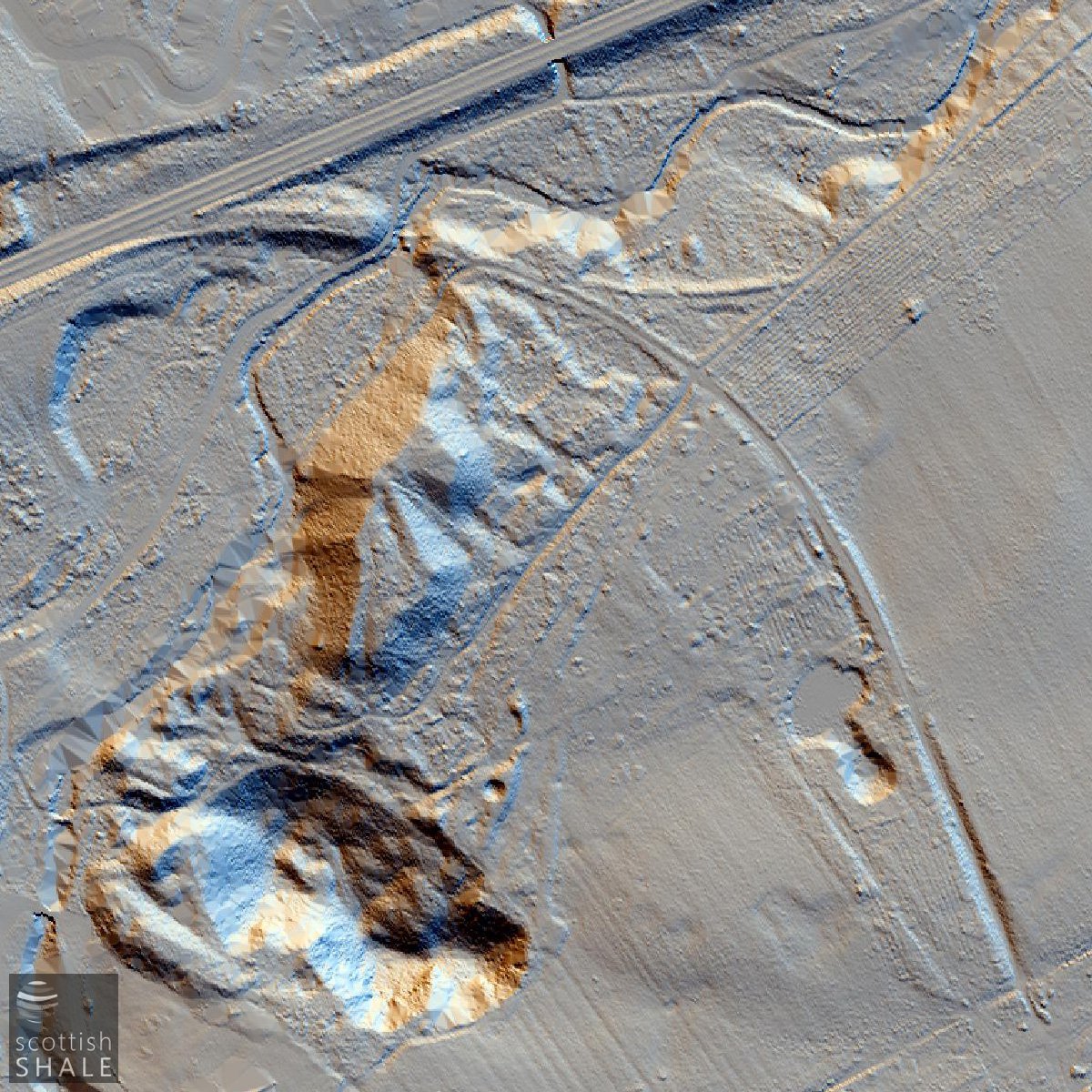

    This subsequent development may have obscured many remaining traces of the oil works. Much of the spent shale bing of the oilworks remains beneath a covering of vegetation, with red blaes exposed on steeper slopes. This bing merges into tips of waste excavated from the quarry to the south. The most likely site for the oil works lies on flat ground between the railway siding and burn. Two short lines on the 1895 map perhaps represent a low retaining wall. Although invisible beneath dense vegetation, LIDAR reveals some faint rectangular forms in this area, perhaps the traces of oil works building.

    Offices and fourteen houses were constructed along with the works. A flat area that remains between the bing and the burn seems the most suitable location for these buildings.

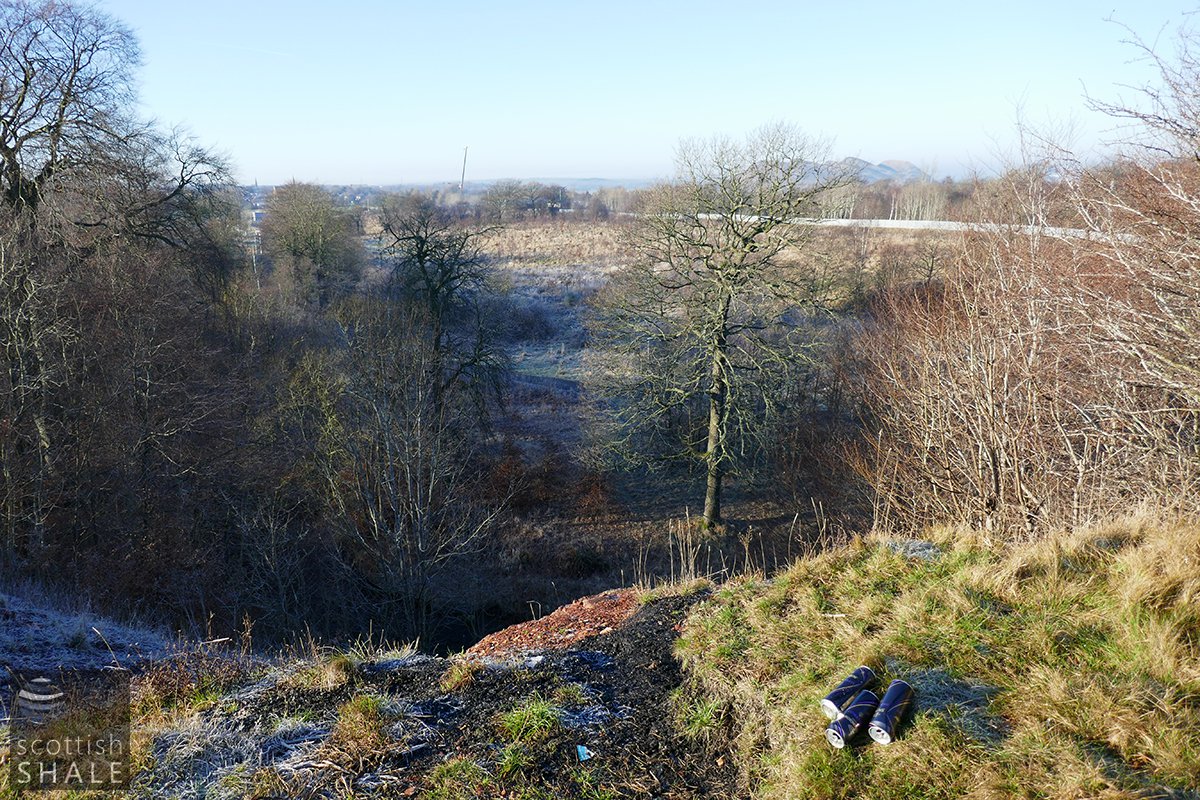

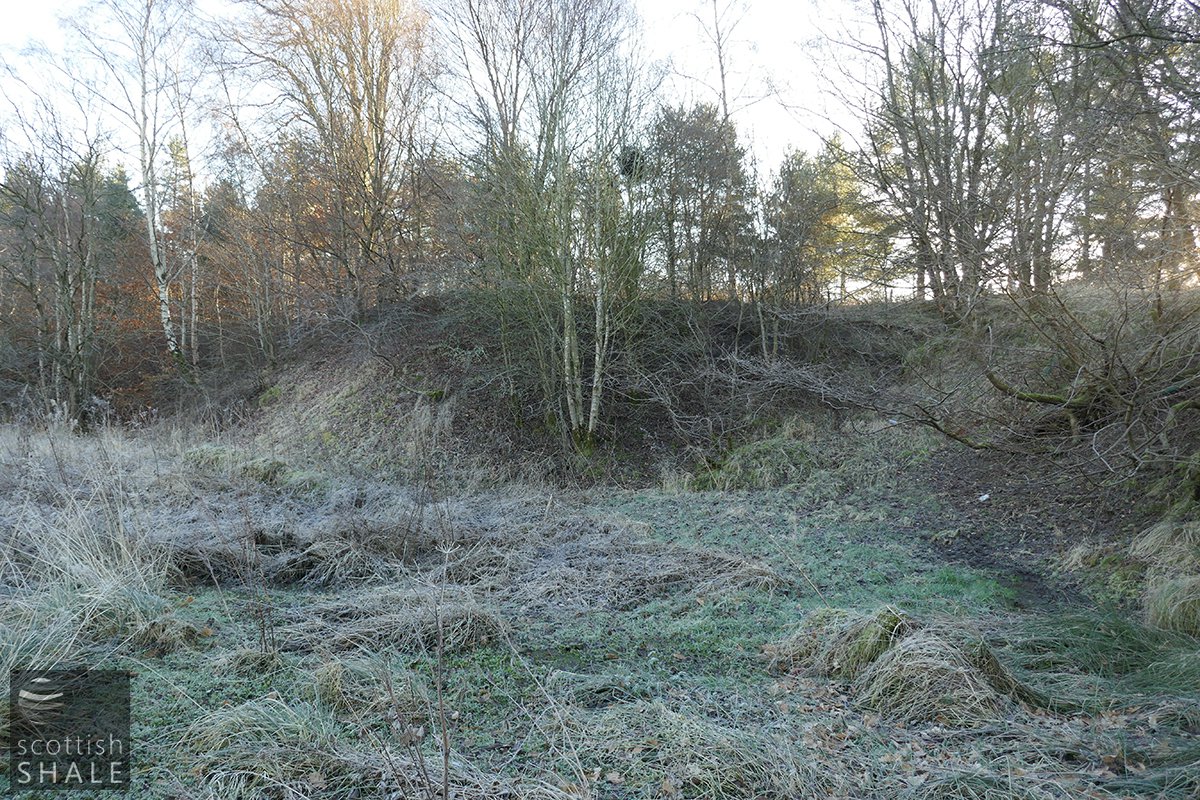

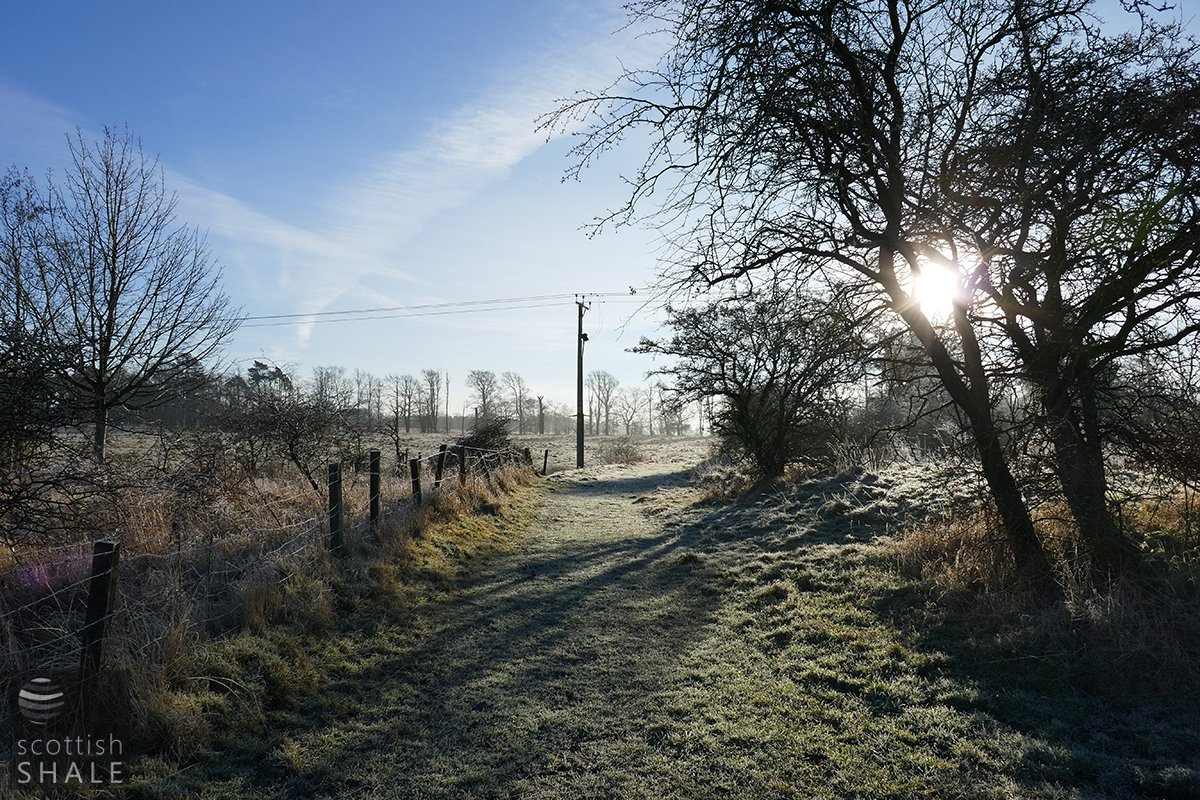

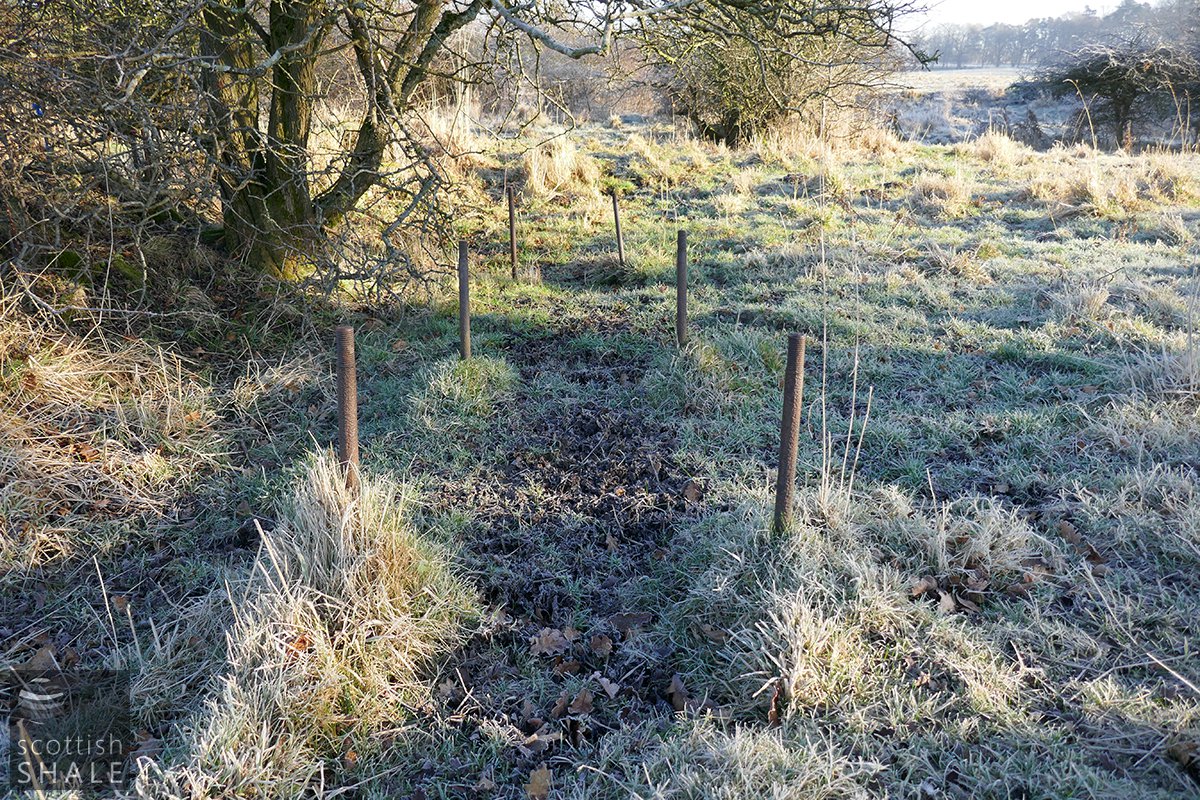

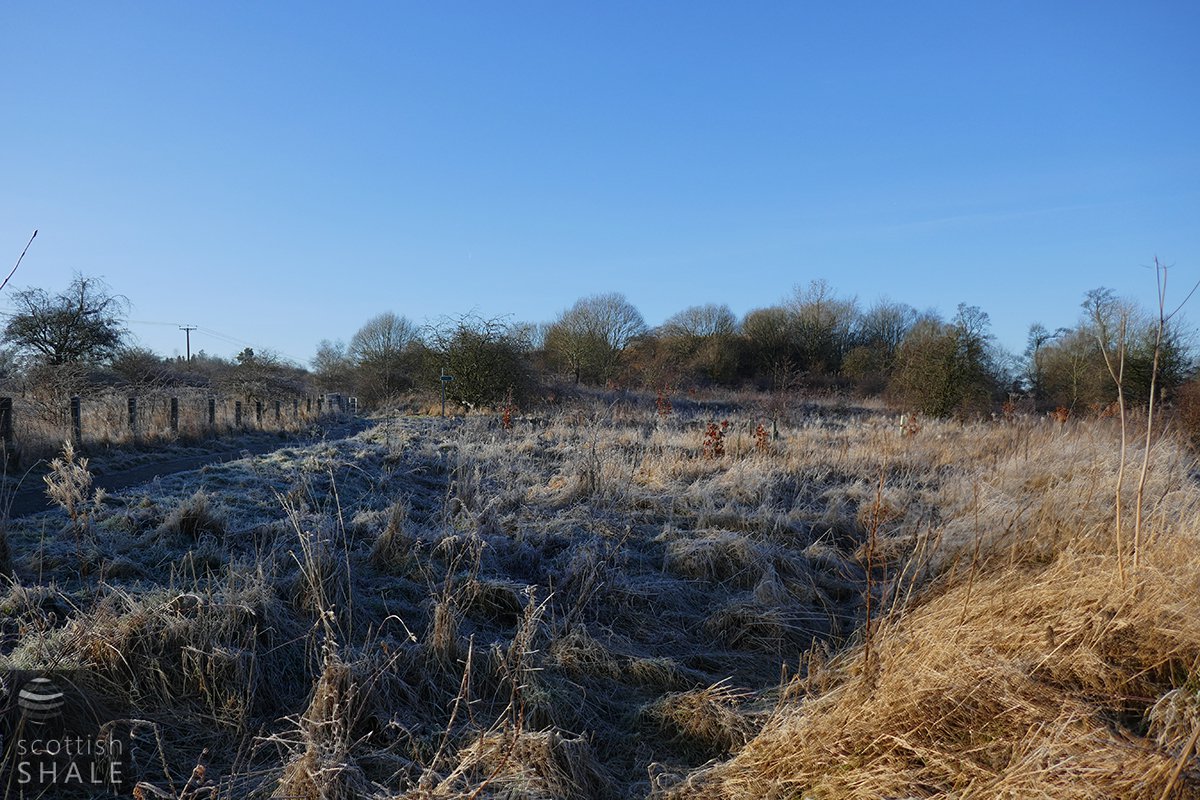

    Recent images

  • Newspaper references
    • SHALE WORK FOR SALE, EAST HERMAND, WEST CALDER,

      To be SOLD by PUBLIC ROUP, within Dowell's Salerooms, 18 George Street, Edinburgh, on Wednesday, the 4th December next at Two o'clock Afternoon.

      The SUB-LEASE of the MINERALS lying under the EASTERN PORTION of the LANDS of HERMAND, extending to about 250 acres or thereby, and belonging to the EAST HERMAND SHALE COMPANY, of which 25 years are still to run, with the whole Works, Plant, and Machinery belonging to the Company. The Works, which have been erected within the last five years, at a cost of nearly £20,000 are upon the most approved principle, and are fully equipped with all the necessary apparatus for the manufacture of Crude Oil and Sulphate of Ammonia. They embrace –

      • 231 Horizontal Retorts, divided into 9 benches of which 7 are under cover.
      • 2 Shale Mines, close to the Works with 3 Engines and Pumping and Winding Machinery complete.
      • 4 Store Tanks for Oil with an aggregate capacity of 17,000 gallons.
      • 5 Water Tanks.
      • 3 Engines used for Pumping Oil, hoisting Spent Shale and in connection with a Jones' Exhaust Engine driving 5 Pan Mills for Brickmaking.
      • Sulphate of Ammonia Plant consisting of 4 Stills, with apparatus complete, all under cover, and 2 Store Tanks.
      • 10 Single Workman's Houses,
      • 4 Double Workmen's Houses,
      • Pay Office. Smithy &c.

      There is also a Level Railway Siding and Branches, connecting the Works with the Cleland and Mid-Calder Line of the Caledonian Railway, the Works being within a mile of West-Calder Station.

      Scotsman, 30th November 1872

      .......

      The examination in bankruptcy of Matthew Dunnet and James Mungo Brown, individual partners of the East Hermand Shale Company, West Calder, was made on Thursday, in Edinburgh, before Sheriff Hamilton ……. Dunnet, after being sworn, deponed "ln 1866 I began business in the manufacture of crude oil from shale in partnership with James Ferrie. We took the sub-lease from Messrs Thomson (sic, Thornton?) of the East Hermand shale field in July 1866. The duration of the lease was thirty-one years from May of that year, and the rent was payable either m fixed rents or in lordships at the option of the proprietor. My capital consisted of sums borrowed from my friends. I had capital under the contract with Mr Ferrie was £1000, his being £2000. In consequence of Mr Ferrie not putting in the capital stipulated, the partnership was dissolved in December 1866. Up to that time we had been going on with the erection of the works. For the next twelve months I continued erecting the works and developing the shale fields on my own account, and in December 1867 I arranged with Mr J. M. Brown to join me as at lst January 1868. He was to furnish £2500, and I was to furnish £2000 of capital. Both of these obligations were implemented. From the beginning of 1868 up to our stoppage we were periodically extending; the work at an aggregate outlay of about £19,600, which was provided by cash advances and by parties with whom we were trading. I attribute my difficulties to our capital being too small for the largeness of our business, and to losses sustained on contracts made in the opening of the present year, and the great rise in the price of coal. If the works were still of the value equivalent to their cost, the firm would be solvent and able to meet its obligations". Mr James Mungo Brown, after being sworn, concurred in omnibus with Mr Dunnet so far as related to the period after which he became a partner.

      Falkirk Herald, 12th December 1872

      .......

      An appeal for a deliverance of the trustee of the bankrupt estate of the East Hermand Shale Company (Limited), West Calder. At the date of the bankruptcy of this company the Caledonian Railway Company were their creditors for an account of £70s, 14s. 8d., of which £263, 4s 2d was stated to have consisted of charges or tolls for carriage of oil for the company; a second proportion of the account, consisting of charges for the supplying of engine-power and other expenses in carrying certain wagon-tanks in which the oil was held; and the third, of rates for the carriage of other goods along the railway, including therein tolls for the use of the railway, the amount of these tolls much exceeding, it was said, £280. The railway company, also at the date of bankruptcy, held a number of wagons and tanks, in which the oil was carried along the line, belonging to the shale company, the estimated value of these tanks being £280.

      Scotsman, 28th November 1873

      .......

      FOR SALE, at East Hermand Oil Work, West Calder.

      • A Pan Mill,
      • 1 Hutch weighing machine,
      • 3 Set Fanners,
      • A quantity of Malleable Iron Pipes, from 1in to 2in,
      • A quantity of Square cube stones
      • About 350,000 good Square Bricks, put in waggon here at 19s per 1000.
      • A number of Workmen's houses &c.

      The above will be sold cheap. Can be seen at the Works; or apply to Thomas Gentles, East Hermand, West Calder.

      Glasgow Herald, 3rd February 1874
